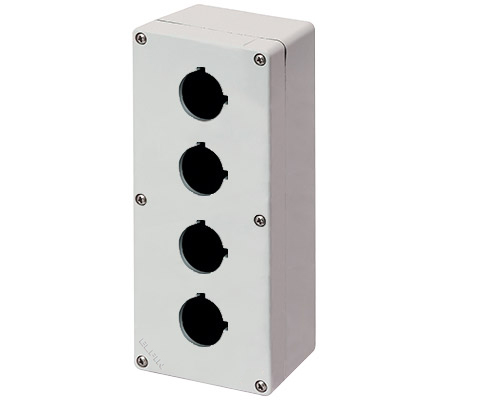

Scatola Pulsantiera Alluminio M4 92x205x70, 4 fori Ø 22, con entrata cavo – ELFIN 040C0920-7EP4

Approvals CE, UL, CSA

Compliance with standards IEC-EN62208, UL508, CSA C22.2 No.14-13

Operating temperatures -40° ÷ +100°C

Protection degree IP66 – IP69 – TYPE 4, 4X (IEC-EN60529 – NEMA 250)

Protection against impact IK09 (IEC-EN62262)

Manufacturing process Diecasting

Enclosure material Aluminum Al Si11 Cu2 (EN AC46100)

Gasket material Cork rubber

Screw material Stainless steel AISI 304

Screw type M4 – cross head Phillips 2

Tightening torque 2,5Nm (22.1 Lb-in)

Overvoltage category Class I (IEC-EN61140)

Warranty period 18 months
